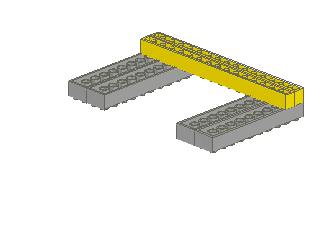

1

2@ Yellow 1x16
4@ Lt. Grey 2x10

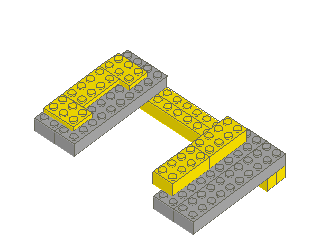

2

2@ Yellow 2x4
2@ Yellow Plate 2x3
1@ Yellow Plate 2x4

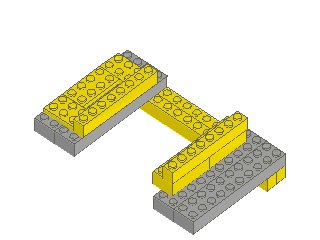

3

2@ Yellow 1x8

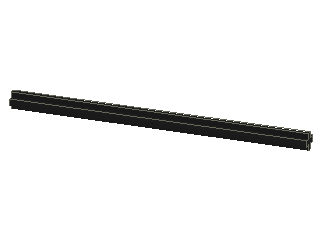

Worm Drive
Subassembly
1

1@ Technic Axle 10
Worm Drive
Subassembly
2

5@ Technic Bushing
1@ Technic Gear Worm

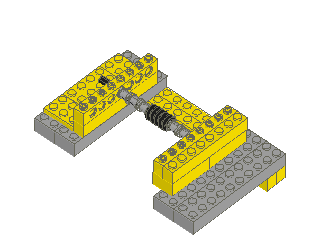

4

1@ Worm Drive Subassembly
2@ Yellow Technic 1x8

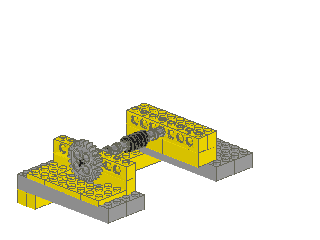

5

1@ Technic Gear 24-tooth

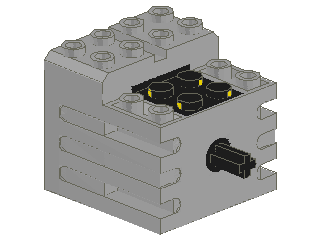

Motor
Subassembly
1

1@ Technic Minimotor 9v
Motor
Subassembly
2

1@ Technic Gear 8-tooth

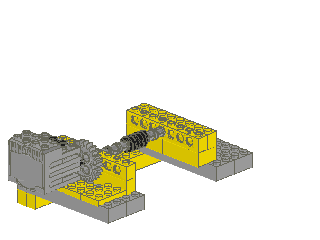

6

1@ Motor Subassembly

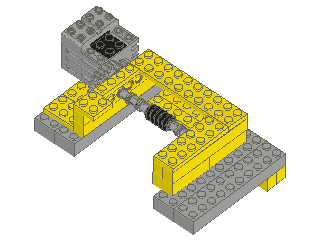

7

1@ Yellow Plate 1x4
1@ Yellow Plate 2x2
1@ Yellow Plate 2x6
1@ Yellow Plate 2x10

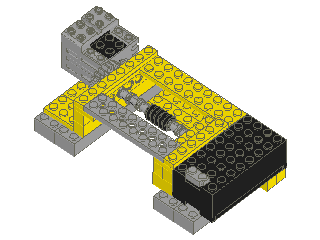

8

1@ Black Battery Box, 9v, Small
1@ Lt. Grey Technic Plate 2x8
1@ Yellow Plate 1x8
1@ Yellow Plate 1x6

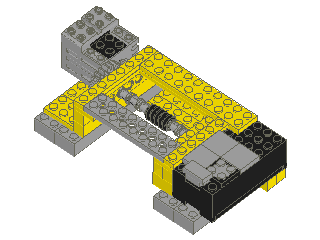

9

1@ Yellow Plate 2x10
3@ Lt. Grey Tile 2x2
1@ Lt. Grey Tile 1x2
1@ Black Turntable 2x2
10

1@ Yellow Technic Plate 2x8
1@ Yellow Technic Plate 2x4
3@ Yellow Plate 1x2
2@ Yellow Plate 1x10
2@ Yellow Plate 2x6

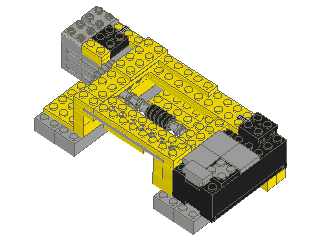

11

1@ Yellow Plate 2x4
1@ Electric Wire 9v 15cm
      (Only the ends are shown)

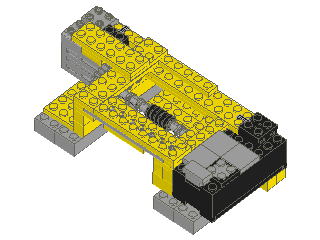

12

1@ Yellow Plate 2x6

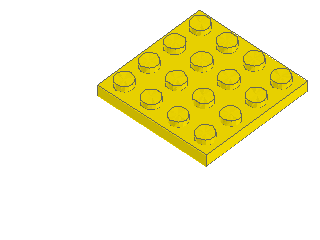

Trigger
Subassembly
1

1@ Yellow Plate 4x4

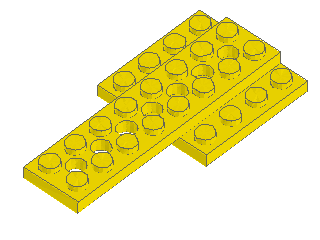

Trigger
Subassembly
2

1@ Yellow Technic Plate 2x8

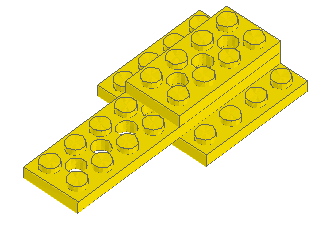

Trigger
Subassembly
3

1@ Yellow Technic Plate 2x4

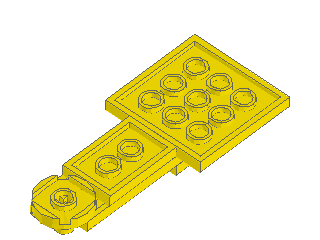

Trigger
Subassembly
4

1@ Yellow Plate 2x3
1@ Yellow Plate 2x2 Round

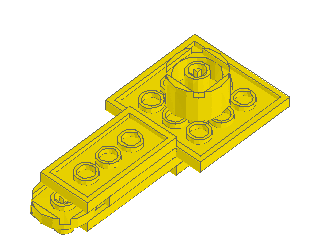

Trigger
Subassembly
5

1@ Yellow Plate 2x4
1@ Yellow 2x2 Round

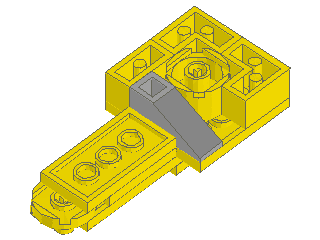

Trigger
Subassembly
6

2@ Yellow 2x2 Corner
1@ Yellow 1x2
1@ Lt. Grey Slope 33 1x3 Inverse

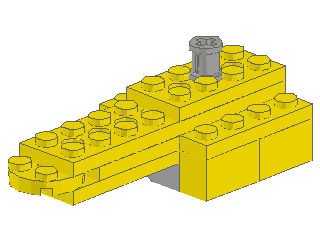

Trigger
Subassembly
7

1@ Technic Bushing

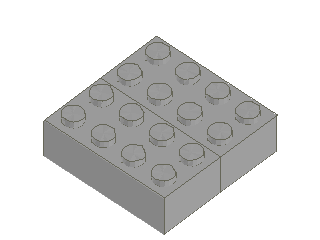

Track Interface
Subassembly
1

2@ Lt. Grey 2x4

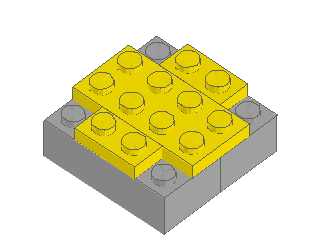

Track Interface
Subassembly
2

2@ Yellow Plate 1x2
1@ Yellow Plate 2x4

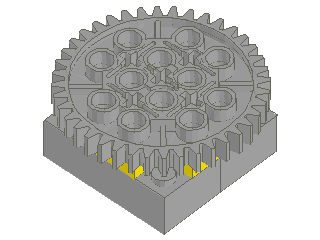

Track Interface
Subassembly
3

1@ Technic Gear 40-tooth
13

1@ Trigger Subassembly
1@ Track Interface Subassembly

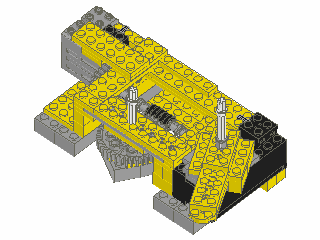

14

1@ Znap Flex Shaft
      (Ends shown as white axles)
15

1@ Duplo Start / Stop Track

The instruction step images are all generated with the help of MLCAD and LDraw. For more info on these tools, check out ldraw.org.

If you already have these tools, you may be interested in the .mpd file or the zipfile of individual .dat files.
