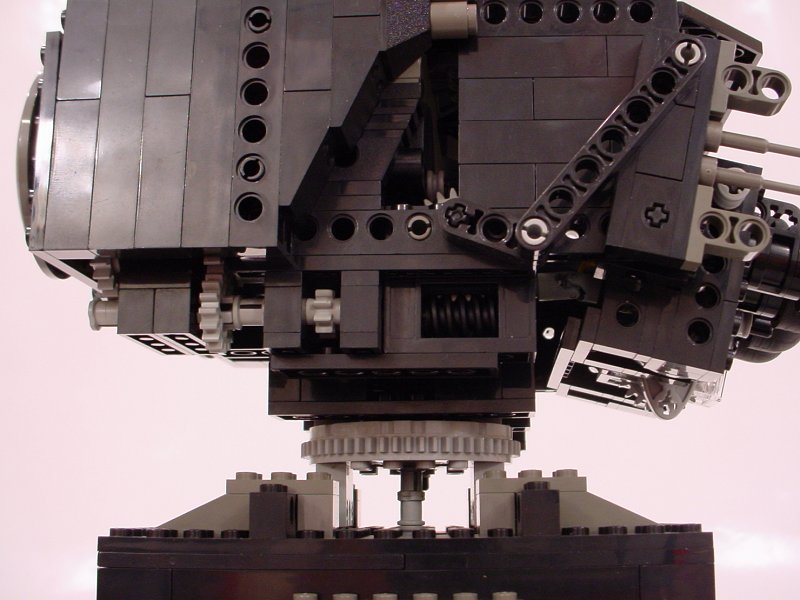

| This shows the elevation system. The motor drives the axle that runs along the bottom of the turret. The worm gear in about the center of the picture drives a gear that rotates the small external lever. That moves the longer lever, which moves the black block in the top right corner, tipping that block (and the cannon assembly) up and down. | |
