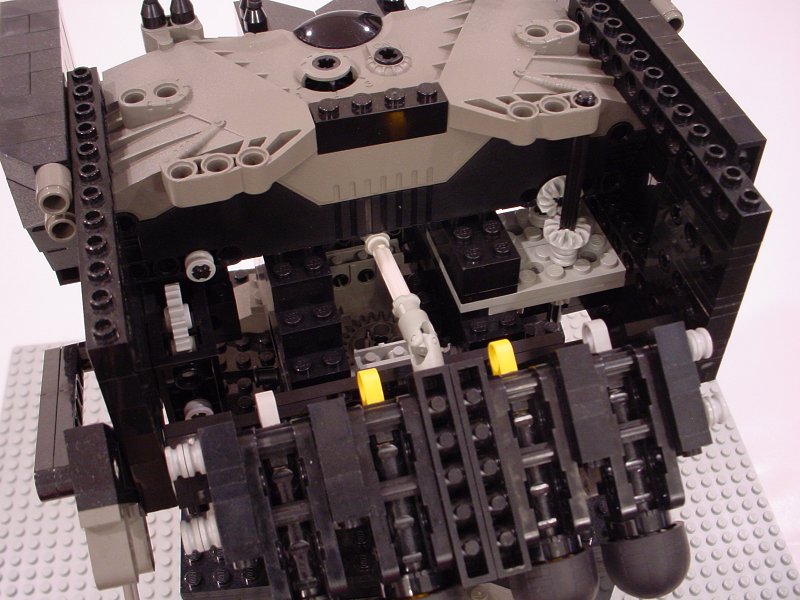

Here's what the front area looks like with the top cover removed. - On the left is the gearbox for the elevation mechanism. - In the middle is the shaft that controls the firing mechanism. - On the right is the rotation gearing. |
|
